3 Burning Chambers MEDICAL WASTE BURNER


Variation

WS-35


Burning Price

Average 35 kgs/hour

Feed Capacity

Ordinary 80 kgs

Main Burning Chamber

460 Liters

Additional Burning Chamber

200 Litres

3rd Burning Chamber

200 Litres

Smoke Filter Chamber

Damp Scrubber System

Feed Mode

Guidebook

Voltage

220V

Power

2Kw

Gas Type

All-natural Gas/LPG

Heating System

Italy Original

Oil Intake (Diesel Oil)

***

Gas Consumption (Natural Gas)

Normal 24 m3n/hour

Internal Dimensions

110 x 70 x 60cm (trick chamber)

Outside Measurements

160 x 100 x 180cm (without moist scrubber)

Temperature Display

Yes

Oil Storage Tank Ability( if oil gas)

***

Door Opening

50 x 50cm

Smokeshaft Dimension

5.0 Meters

Smokeshaft Kind

Stainless-steel

Equipment Gross Weight

5000 kgs

Procedure Technical Specs

Secret Chamber Temperature Level

800 ℃–– – – -1000 ℃

Added Chamber Temperature Degree

1000 ℃ -1200 ℃

Residency Time

2.0 Sec.

Burning Effectiveness

> 98%

Waste Lower Calorific Power

3000Kcal

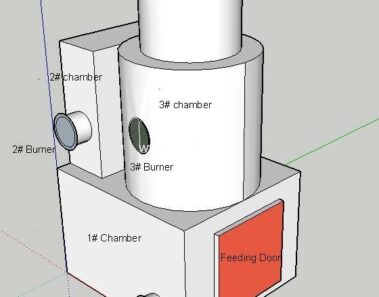

Primary chamber:
Heavy duty mild steel casing, High quality Refractory lining and insulation 01 x natural gas ignition burners (automatic) 01 x temperature

sensor points with complete internal fans.
Secondary Chamber:
Heavy duty mild steel casing, high quality refractory lining and insulation 01 x natural gas burners (automatic) with complete 01 internal fans.

02 Sec gas residence times.
Third Chamber:
Heavy duty mild steel casing, high quality refractory lining and insulation 01 x natural gas ignition burners (automatic) with complete internal

fans. 02 Sec gas residence time.
