Containerized Burner Design CA30 from HICLOVER

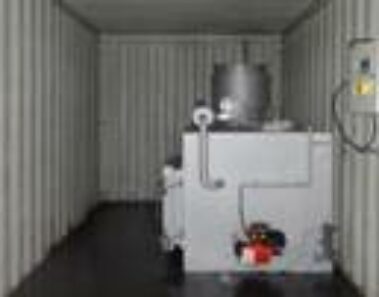

Containerized Incinerator is one type of mobile incinerator. we build the incinerator and mounted the incinerator into shipping container(20′ container or 40′ container), with necessary Basic work, such as flooring, lighting, wiring, etc.

Items/Model

CA30


Shed Rate

Common 10 kg/hour

Feed Capability

Average 30kg per feeding

Control Establishing

PLC( Programmable Reasoning Controller Burner)

Combustion Chamber

330L

Internal Measurements

75x75x60cm

Additional Chamber

180L

Smoke Filter Chamber

Yes

Feed Establishing

Manual Feeding

Voltage

220V

Power

0.5 Kw

Oil Intake (kg/hour)

Ordinary 13.3

Gas Use (N.G, m3n/Hour)

Typical 16

Gas Usage (L.P.G, m3n/Hour)

Average 11.7

Temperature Level Monitor

Four Digital Program

Temperature Level Defense

Yes

Oil Container

100L or Even Much More( Optional)

Feed Door

55x50cm

Smokeshaft

5Meter or Also A Lot More( Optional)

Smokeshaft Kind

Stainless-steel

1st.

Gross Weight

4000kg( without container)

Exterior Dimensions

175x120x140cm

Gross Weight

4000kg( without container)

External Measurements

175x120x140cm
