3 Combustion Chambers MEDICAL WASTE INCINERATOR

Version

WS-35


Burning Price

Average 35 kgs/hour

Feed Capacity

Average 80 kgs

Main Combustion Chamber

460 Liters

Secondary Combustion Chamber

200 Litres

3rd Burning Chamber

200 Litres

Smoke Filter Chamber

Wet Scrubber System

Feed Mode

Manual

Voltage

220V

Power

2Kw

Gas Type

All-natural Gas/LPG

Heater

Italy Original

Oil Consumption (Diesel Oil)

***

Gas Consumption (Natural Gas)

Ordinary 24 m3n/hour

Inner Dimensions

110 x 70 x 60cm (key chamber)

Outside Dimensions

160 x 100 x 180cm (without damp scrubber)

Temperature Screen

Yes

Oil Storage Tank Capability( if oil gas)

***

Door Opening

50 x 50cm

Chimney Size

5.0 Meters

Smokeshaft Type

Stainless-steel

Equipment Gross Weight

5000 kgs

Procedure Technical Specifications

Key Chamber Temperature

800 ℃–– -1000 ℃

Additional Chamber Temperature Level

1000 ℃ -1200 ℃

Residency Time

2.0 Sec.

Burning Effectiveness

> 98%

Waste Lower Calorific Power

3000Kcal

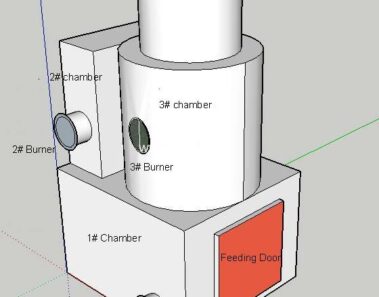

Primary chamber:
Heavy duty mild steel casing, High quality Refractory lining and insulation 01 x natural gas ignition burners (automatic) 01 x temperature

sensor points with complete internal fans.
Secondary Chamber:
Heavy duty mild steel casing, high quality refractory lining and insulation 01 x natural gas burners (automatic) with complete 01 internal fans.

02 Sec gas residence times.
Third Chamber:
Heavy duty mild steel casing, high quality refractory lining and insulation 01 x natural gas ignition burners (automatic) with complete internal

fans. 02 Sec gas residence time.
