Pet Crematory with Movable system & & Automobile. Door & Independent Position

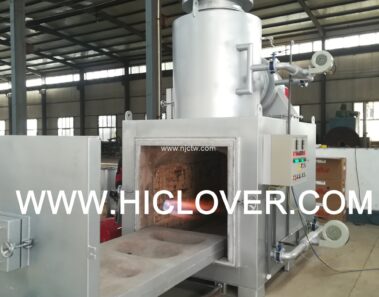

Incinerator Model A1500, Introduction

This model is big-scale pet cremation tools for huge animals.

Construction is dual/double combustion chamber with 03 units oil/gas burner,
batch load incineration equipment. Animal feed chamber is 1500Liters (Model: A1500).
Primary & Secondary combustion chambers and included mix-combustion chamber,
smoke filter chamber with firebrick and Refractory Concrete chamber. Batch load on
the bottom of chamber. Incinerator panel control suit for local operation.

Model

A1500

Burning Rate

Ordinary 50 kgs/hour

Feed Ability

Ordinary 150 kgs

Main Combustion Chamber

1500 Liters

Additional Combustion Chamber

500 Liters

Mix Combustion Chamber

Yes

Smoke Filter Chamber

Yes

Feed Setting

Manual

Voltage

220V/380V

Gas Kind

Diesel Oil/ All-natural Gas/LPG

Burner

Italy Original

Oil Intake (Diesel Oil)

Typical 34 kg/hour

Gas Intake (Gas)

Ordinary 41 m3n/hour

Inner Measurements

150 x 100 x 96cm (primary chamber)

Outside Measurements

240 x 170 x 380cm (without chimney)

Temperature Monitor

Yes

Oil Container Ability( if oil gas)

300 Litres

Door Opening

59 x 81cm

Smokeshaft Length

10.0 Meters

Smokeshaft Type

Stainless-steel

Tools Gross Weight

7500 kgs

Operation Technical Specifications

Primary Chamber Temperature

800 ℃–– -1000 ℃

Secondary Chamber Temperature

1000 ℃ -1200 ℃

Residency Time

2.0 Sec.

Burning Efficiency

> 98%

Waste Lower Calorific Power

3000Kcal
