Average 50-100 kg/hour Burn Price

Items/Model	TS75( PLC)
Concept	Waste Incineration Therapy
Burn Price	Average 50-100 kg/hour
Feed Capacity	Ordinary 200-300 kg/feeding
Control Mode	PLC( Programmable Reasoning Controller Incinerator)
Face Oil Paint	800 ℃
Combustion Chamber	768 Liters (0.768 M3)
Internal Measurements	1200x800x800mm
Additional Chamber	384 Liters (0.384 M3)
Smoke Filter Chamber	Yes
Feed Setting	Handbook
Voltage	210/240V 50Hz 1P
Power	1.3 Kw
Oil Intake (kg/hour)	Typical 20.4( D.O)
Thermal capability( kw/hour)	166-332
Gas Intake (m3/hour)	***
Temperature Level Monitor	Digital Display
Oil Storage Tank	3000L
Feed Door	60x50cm
Smokeshaft	10Meter
Chimney Kind	Stainless Steel
1st. Chamber Temperature	800 ℃–– -1000 ℃
2nd. Chamber Temperature Level	1000 ℃ -1200 ℃
Residency Time	2.0 Sec.
Gross Weight	7500kg
Outside Measurements	260x160x250cm( without smokeshaft)

We provide solitary burning chamber, double combustion chambers, 3 burning chambers and multi-combustion

chambers waste incinerators for lab, center, medical facility, medical center, hygiene professional waste devastation with clinical

disposable, biological waste, medical plastic waste, hazardous waste, red bag waste, needle disposal, gauze and also plasters,

sealed sharp containers, pathological waste, trace-chemotherapeutic wastes, and so on.

Our series of incinerators provide for little to large scale pet cremation relevant companies, such as poultry farms, livestock

farms, lamb farms, pig ranches, stables, kennels, screening lab, catteries, pet crematoriums.

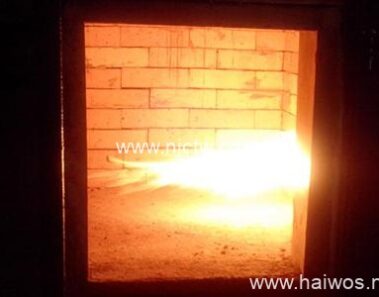

The incinerator burn waste in primary combustion chamber and burn the smoke from primary combustion chamber again to

make sure environmentally friendly with no black smoke, smelless, reduce pathogenic bacteria infection.

System solutions for medical waste environmental, including waste incineration, smoke emission treatment, high-temperature

sterilization, ultraviolet sterilization lamp, waste shredder, needle destroyer, medical waste package, sharp containers, etc.

The pet cremation equipment humanized design with movable platform, small space covers for modern pet cremation

business owner all over the world.

The containerized mobile incinerator mounted in ISO container before leave factory, pre-installation, no incineration house

build construction, movable by truck and ultraviolet lamp sterilization inside.

We are growing brand for environmental protection field, and market share with most of

Africa, Middle East, Southeast Asia countries and part of North America, Europe territory. We are trusted partner for governmental

organizations, non-profit organizations, international contractors, logistics organizations, military, pet cremation business owners, etc.

We have export experience more than 40 countries, including war zone like Iraq, Afghanistan, Somalia, South Sudan.

We are china burner manufacturer, contractor and also exporter. Supplier clear up rate for incinerator customer,

supply clinical incinerator, medical facility burner, pet incinerators, hog burners, pet dog cremation devices, tiny incinerator,

pet incinerator, pet burner, mobile burner, small pet incinerator, infectious waste pyrolysis device, laboratory

burner.
