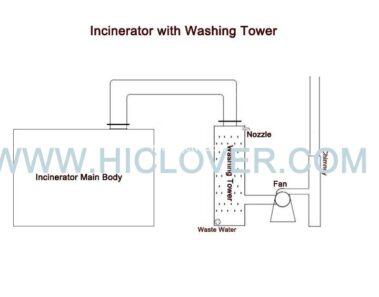

Burning capacity 50kg/hr with wet scrubber with dual fired burner

This model is small-scale waste incineration equipment for small waste output.

Construction is dual/double combustion chamber with 02 units oil/gas burner.

Waste feed chamber is around 900Liters (0.9m³, YD-50). Primary & Secondary

combustion chambers and included mix-combustion chamber. Waste load on the

bottom of chamber. Incinerator panel control suit for local operation.

Model	YD-50 with wet scrubber
Burning Rate	Average 50 kgs/hour
Feed Capacity	Average 100 kgs
Primary Combustion Chamber	900 Liters
Secondary Combustion Chamber	200 Liters
Mix Combustion Chamber	Yes
Smoke Filter Chamber	Wet Scrubber(Washing Tower)
Feed Mode	Manual
Voltage	220V
Power	7 Kw
Fuel Type	Diesel Oil/ Natural Gas/LPG
Burner	Italy Original
Oil Consumption (Diesel Oil)	16.9 kg/hour
Gas Consumption (Natural Gas)	***
Internal Dimensions	120x90x85cm (primary chamber)
External Dimensions	400x200x230cm (without chimney)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	300 Liters
Door Opening	62 x 68cm
Chimney Length	5.0 Meters
Chimney Type	Stainless Steel
Equipment Gross Weight	6000 kgs
Operation Technical Specifications
Primary Chamber Temperature		800℃–-1000℃
Secondary Chamber Temperature		1000℃-1200℃
Residency Time		2.0 Sec.
Burning Efficiency		＞98%
Waste Lower Calorific Power		3000Kcal
