Design
CA-200
Burning Rate
Ordinary 100 kgs/hour
Key Burning Chamber
2000 Liters
Additional Burning Smokeshaft
Yes
Feed Mode
Guidebook
Voltage
220V
Power
3.0 Kw
Fuel Kind
Diesel Oil
Burner
Italy Original
Oil Usage (Diesel Oil)
Typical 53 kg/hour
Interior Dimensions
230 x 100 x 90cm (primary chamber)
External Measurements
290 x 200 x 170cm (key chamber)
Temperature Monitor
Yes
Oil Container Capacity( if oil fuel)
500 Liters
Door Opening
90 x 90cm
Smokeshaft Size
5.0 Meters
Chimney Type
Stainless Steel
Devices Gross Weight
9000 kgs( with container)
Procedure Technical Specifications
Paimary Chamber Temperature
800 ℃–– 1000 ℃
Second Chamber Temperature Level
1000 ℃ -1200 ℃
Residency Time
2.0 Sec.
Burning Efficiency
＞ 98%
Waste Lower Calorific Power
3000Kcal

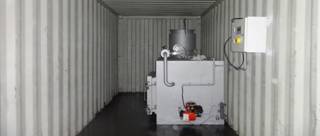

Mobile crematorium
